TYPE GF Air Casters for Industrial Equipment Moving
TYPE GF air film modules for industrial equipment moving. Compare module sizes, set ratings and the floor and air supply needed for your project.
Product Overview

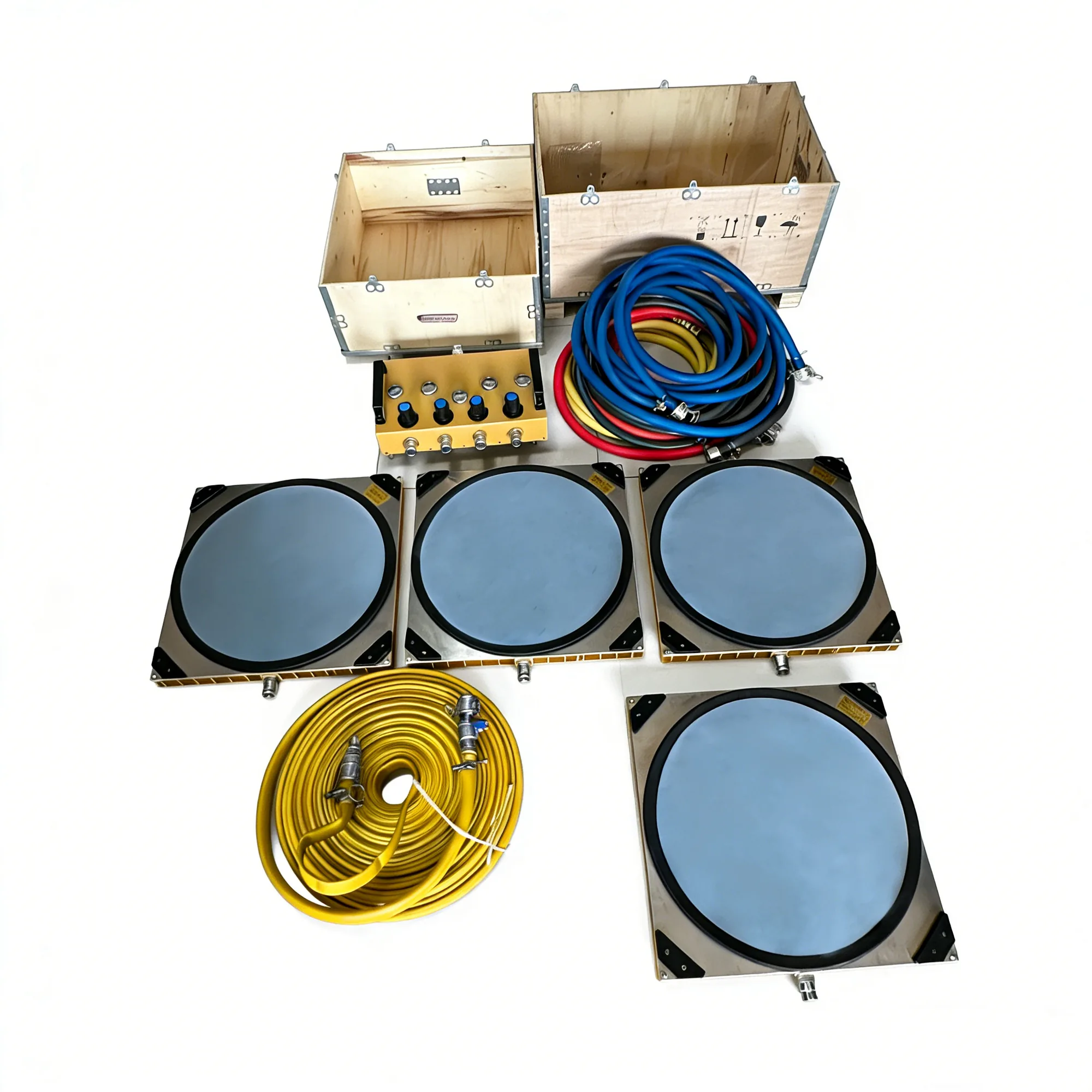

TYPE GF air casters use compressed air to form a thin film beneath the cushion, allowing movement and rotation on a suitable floor. Review the module dimensions, load at each support point and cushion specification before selecting a set. For cleanrooms or sensitive production areas, confirm particle, ESD, material and air-quality requirements separately.
Load Capacity & Performance
- 3.2 T to 15 T per individual air caster module
- 12 T to 90 T per 4-piece or 6-piece set
- Cushion material and replacement options confirmed for the selected model
- Smooth film formation on epoxy and polished concrete
- Sensitive-environment suitability subject to site and material review
- 360-degree rotation with precise final positioning
Technical Specifications
| Model | Single Unit Load | Rated Set Load (configuration below) | Modules per set | Module Size (mm) | Air Flow | Main air supply pressure (kgf/cm²) |
|---|---|---|---|---|---|---|
| HC-QD380GF | 3.2 T | 12 T | 4 | 380 x 380 x 50 | 3.5 m3/min | 7–12 (confirm for model) |
| HC-QD380GF6 | 3.2 T | 19.2 T | 6 | 380 x 380 x 50 | 5.5 m3/min | 7–12 (confirm for model) |
| HC-QD540GF | 7 T | 28 T | 4 | 540 x 540 x 50 | 6.5 m3/min | 7–12 (confirm for model) |
| HC-QD540GF6 | 7 T | 42 T | 6 | 540 x 540 x 50 | 10 m3/min | 7–12 (confirm for model) |
| HC-QD686GF | 10 T | 40 T | 4 | 686 x 686 x 50 | 9 m3/min | 7–12 (confirm for model) |
| HC-QD686GF6 | 10 T | 60 T | 6 | 686 x 686 x 50 | 15 m3/min | 7–12 (confirm for model) |
| HC-QD914GF6 | 15 T | 90 T | 6 | 914 x 914 x 50 | 20 m3/min | 7–12 (confirm for model) |
T denotes metric tons. Listed set ratings are model specifications, not a calculation of usable capacity from total weight alone. Main supply pressure differs from regulated cushion pressure. Follow the confirmed model manual; never apply main supply pressure directly to a cushion.
Published model data is a selection reference; confirm pressure, flow, module count and rated capacity in the quotation. TYPE GF shares the same load range as TYPE B with upgraded cushion material and surface finish.
Structure & Components
- Premium air cushion with reinforced wear layer
- Body plate with corrosion-resistant surface treatment
- Sealed air inlet fitting and hose coupling
- Air treatment requirements reviewed against the site specification
- Optional anti-static configuration
- Optional stainless or coated hardware for wet environments
Floor Requirements
Air casters require a smooth, flat and sealed floor with joints and gaps reviewed for the selected cushion and route. Epoxy-coated concrete, polished concrete and steel plate flooring are recommended. Rough, cracked or unsealed surfaces prevent the air film from forming and must be prepared before installation. We review your floor condition and provide preparation guidance before quotation.
Typical Applications
- Semiconductor equipment moving and cleanroom installation
- Precision machine tool positioning
- Electronic production line reconfiguration
- Medical and laboratory equipment installation
- Aerospace precision assembly
- Turbine and generator component handling
Customization Options
Systems can be configured to match your equipment and site conditions. Typical customization items:
- Load capacity from 3.2 T per unit to 1500 T complete platform systems
- Module size and quantity to match equipment footprint and center of gravity
- Air supply configuration (compressor, control console, hose reel) sized to your route
- Control mode: manual, remote wireless or synchronized multi-unit control
- Application-specific materials and surface treatment, subject to engineering review
- Custom platform frame, tooling interface and positioning fixtures
Quality Control & Test Support
Confirm the test conditions and documentation for the selected model and order: load review, operation video, inspection record, manual and packing information. Agree any required acceptance test before production.
Air caster equipment demonstration. Ask for a video and test conditions for your selected model; this general clip is not a load acceptance record.
FAQ
Plan Your Heavy Load Move
Review system selection, floor condition and air supply before requesting a configuration.
Plan Your TYPE GF Air Casters Project
Start with your load weight, equipment dimensions and moving route. Share what you know; we will clarify the details needed for a quotation.
Air caster order quantity & lead time
Minimum order: 1 set. For air caster models rated at 60 metric tons or below, normal lead time is 5–10 working days. Custom model lead times are confirmed by project.
Confirm the production start date, included components and delivery schedule in your quotation. Shipping time depends on destination and transport method. These air caster terms do not specify lead times for skate movers, stair climbers or toe jacks.
